Another welding controller available on the market uses our QUADRIGO measuring modules . These can be flexibly integrated into existing systems or retrofitted. They are ideally suited for installation in control cabinets. Depending on the specific task, the modules are available for one to a maximum of two measuring points. Thus a maximum of two joining processes can be measured and monitored simultaneously with the four measured variables (current, voltage, force and displacement). Operation and data archiving are performed via a PC.

The QUADRIGO Master is an industrial PC designed for space-saving control cabinet installation in industrial applications. The PQS software package – for data recording but also for overall system operation – can be installed on the QUADRIGO Master. QUADRIGO Master PCs can of course also be used for other applications, such as running XPegasus software.

Harms & Wende offers a range of performance classes to suit different requirements. The bandwidth ranges here from 1 to 16 measuring points that can be operated with one Master.

If you are interested in our PQS system but are not yet certain, we can convince you with our mobile measurement system.

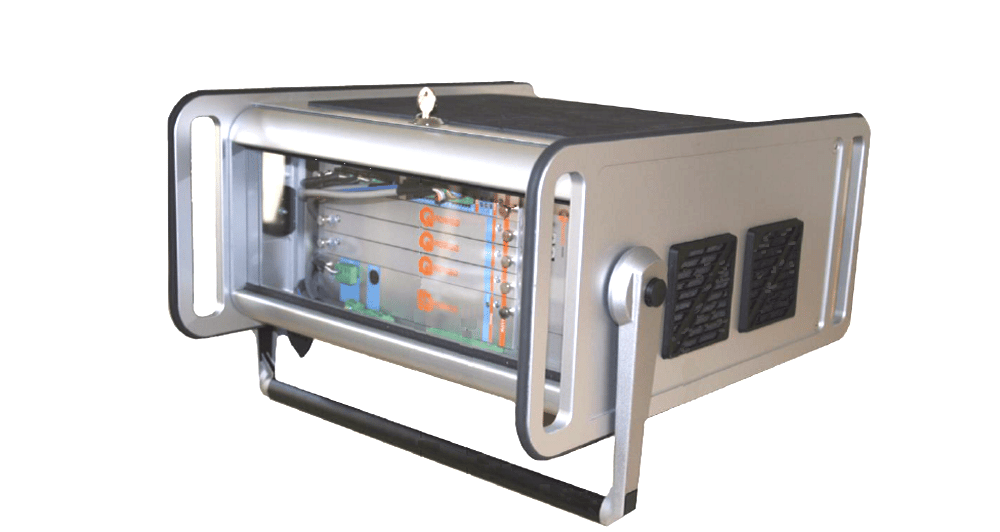

We supply you with the ‘MobMess’ on a loan basis for a specific period so that you can experience the full range of functions.

Since all important functions are already built in, it only takes a quick installation of the measurement system. We are also happy to evaluate the collected data together with you.

If necessary, ask one of our service employees.

We offer you a control cabinet that is ready for connection and pre-configured for you.

The following components are installed:

• Power supply 110/240 V, fuse, service socket (optional)
• QUADRIGO-MM1000 or MM2000 measurement module
• Master PC (optional)
• Battery for UPS (optional)
• Ethernet implementation

Safe operation and convenient visualisation are essential prerequisites for the effective use of an inline quality assurance system. Furthermore, confusing or complex production facilities demand specially adapted functional and information offerings. Not everything should or may be possible everywhere. But important information must be available quickly and reliably.

QUADIRGO-VISU PCs can of course also be used for other applications, such as for running XPegasus software.

For detailed descriptions and equipment features of the Quadrigo modules, please refer to the
separate HWH-QST product catalogue.
